KBP02, KBP005 SILICON BRIDGE RECTIFIERS

Sunmate

Description

VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A .

📥 Download Datasheet

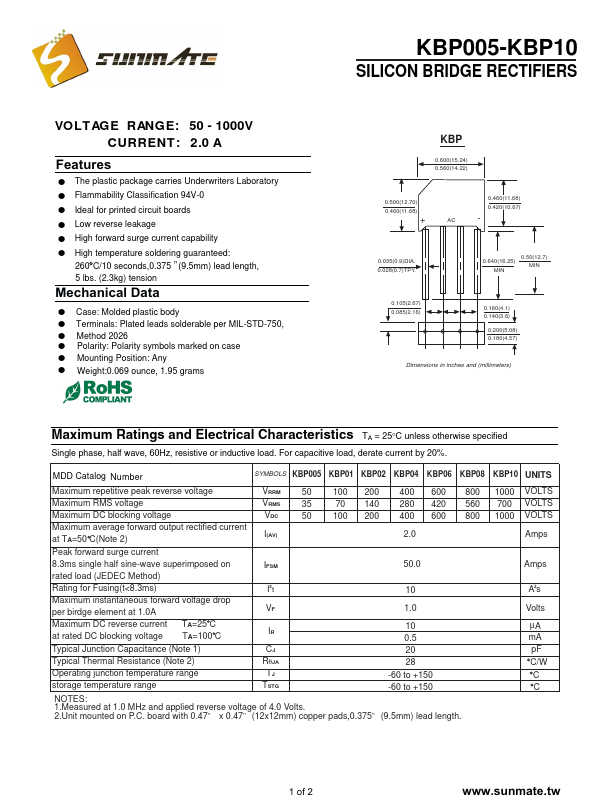

KBP02 Datasheet Preview — This datasheet PDF includes multiple part numbers: KBP02, KBP005. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: KBP02, KBP005
Manufacturer: Sunmate
File Size: 641.08 KB
Datasheet: KBP005-Sunmate.pdf
Description: SILICON BRIDGE RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: KBP02, KBP005.
Please refer to the document for exact specifications by model.

Features

* ! The plastic package carries Underwriters Laboratory ! Flammability Classification 94V-0 ! Ideal for printed circuit boards ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: 260 C/10 seconds,0.375 ” (9.5mm) lead length, 5 lbs. (2.3kg) tension Mec
