MB3505W - SINGLE-PHASE SILICON BRIDGE RECTIFIER

Sunmate

📥 Download Datasheet

MB3505W Datasheet Preview — Preview of MB3505W PDF

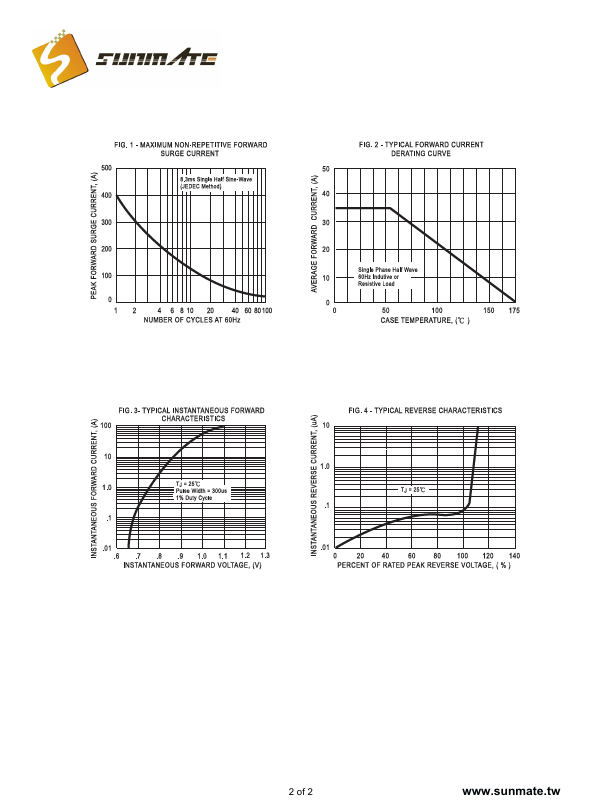

datasheet Preview Page 2

Datasheet Details

Part number: MB3505W
Manufacturer: Sunmate
File Size: 559.59 KB
Datasheet: MB3505W-Sunmate.pdf
Description: SINGLE-PHASE SILICON BRIDGE RECTIFIER

MB3505W Product details

Features

D Metal case Maximum Heat Dissipation D Surge overload ratings-400 Amperes D Low forward voltage drop Mechanical Data D Case: Metal, electrically isolated D Epoxy: UL 94V-0 rate flame retardant D Lead: MIL-STD-202E, Method 208 guaranteed D Polarity: As marked D Mounting position: Any D Weight: 30 grams MB-35W (1.415.52)MAX. .042(1.1) .039(1.0) DIA. TYP. 1.181(30.0) 1.102(28.0) .673(17.1) .633(16.1) (.1559.10)MIN. HOLE FOR NO. 8 SCREW AC .732(18.6) .692(17.6) + 1.181(30.0) .468(11.9) 1.
