MRA4003, MRA4001 SURFACE MOUNT SILICON RECTIFIER DIODES

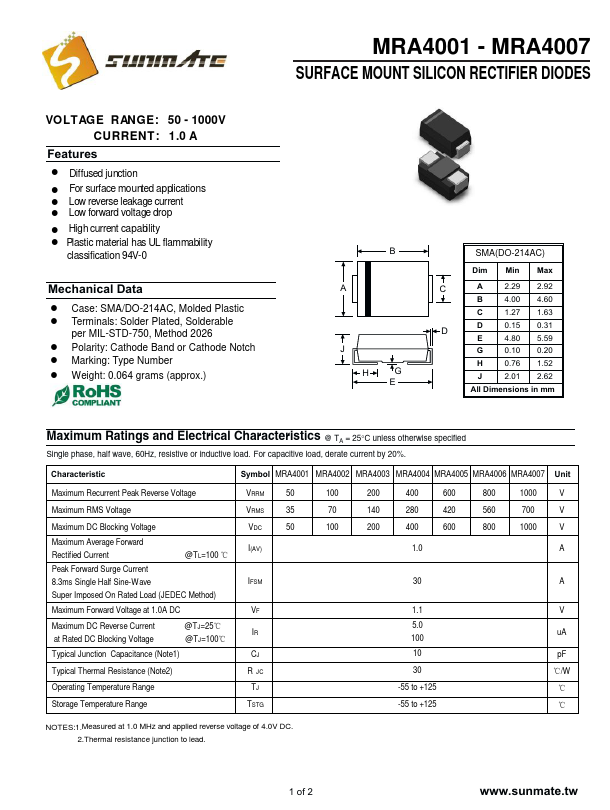

📥 Download Datasheet Datasheet Preview Page 1

Description

MRA4001 - MRA4007 SURFACE MOUNT SILICON RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0 A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MRA4003, MRA4001. Please refer to the document for exact specifications by model.

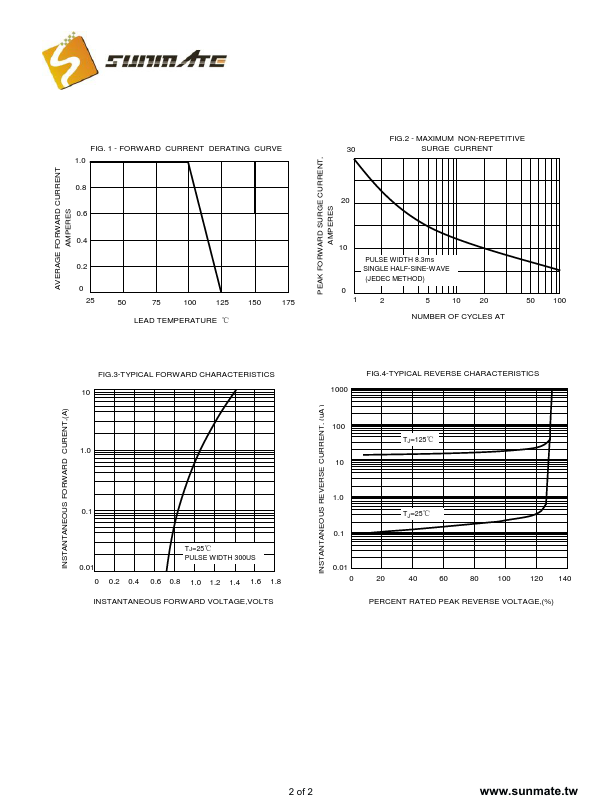

datasheet Preview Page 2

Datasheet Specifications

Part number
MRA4003, MRA4001
Manufacturer
Sunmate
File Size
178.25 KB
Datasheet
MRA4001-Sunmate.pdf
Description
SURFACE MOUNT SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: MRA4003, MRA4001.
Please refer to the document for exact specifications by model.

Applications

* ! Low reverse leakage current ! Low forward voltage drop ! High current capability ! Plastic material has UL flammability classification 94V-0 Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode
