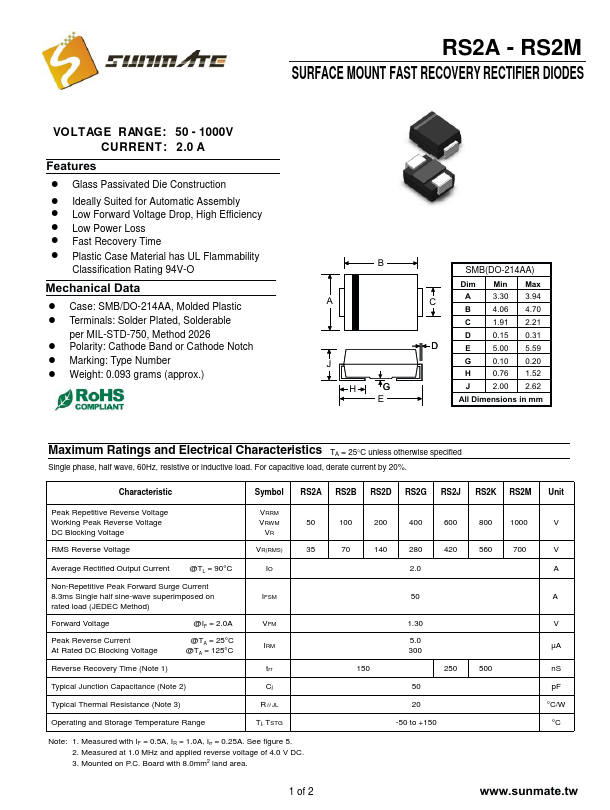

RS2K, RS2A - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	RS2K, RS2A
Manufacturer	Sunmate
File Size	243.55 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	RS2A-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: RS2K, RS2A. Please refer to the document for exact specifications by model.

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time ! Plastic Case Material has UL C la s s ification Ratin g 94V -O Flammability B SMB(DO-214AA) Mechanical Data ! Case: SMB/DO-214AA, Molded Plastic ! Terminal.
