SMF302C, SMF301C SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

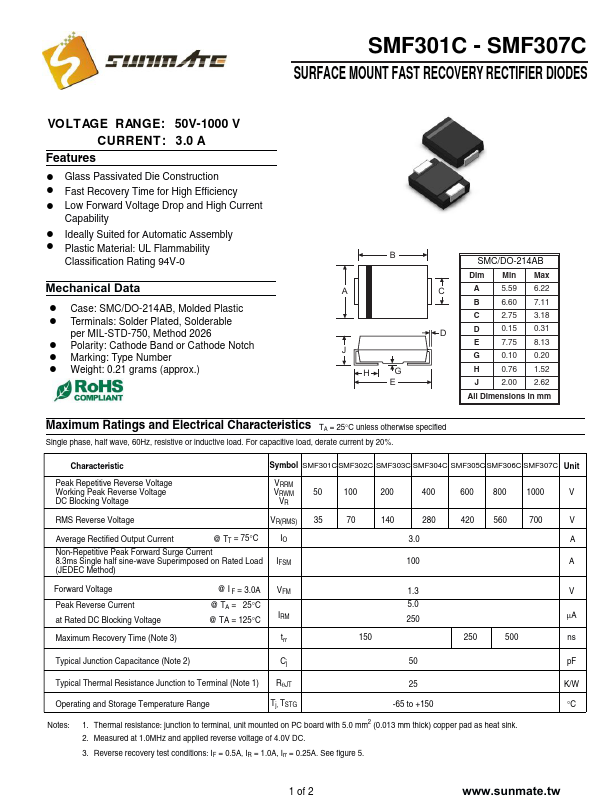

📥 Download Datasheet Datasheet Preview Page 1

Description

SMF301C - SMF307C SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50V-1000 V CURRENT: 3.0 A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMF302C, SMF301C. Please refer to the document for exact specifications by model.

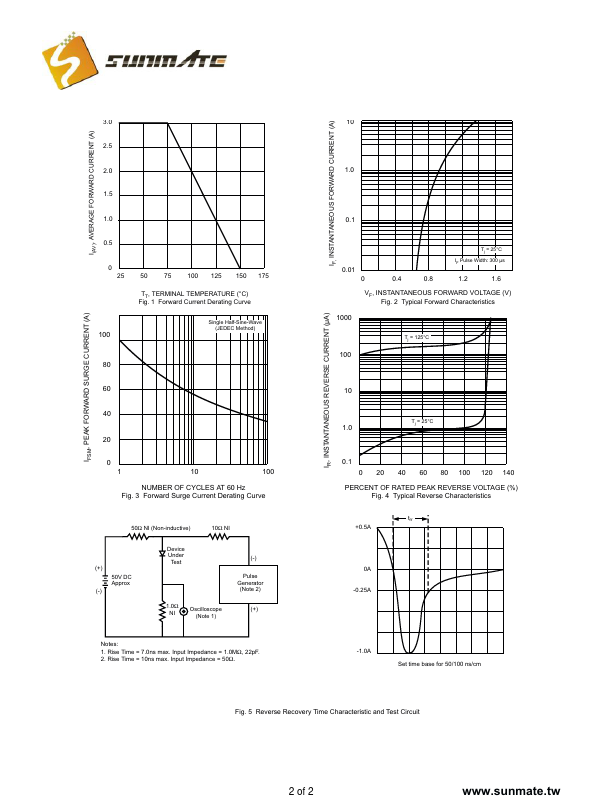

datasheet Preview Page 2

Datasheet Specifications

Part number
SMF302C, SMF301C
Manufacturer
Sunmate
File Size
107.84 KB
Datasheet
SMF301C-Sunmate.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: SMF302C, SMF301C.
Please refer to the document for exact specifications by model.

Features

* ! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMC/DO-214AB, Molded Plastic ! Terminals
