W08 SILICON BRIDGE RECTIFIERS

Sunmate

Description

W005-W10 SILICON BRIDGE RECTIFIERS VOLTAGE RANGE: 50 - 1000V CURRENT: 1.5A .

📥 Download Datasheet

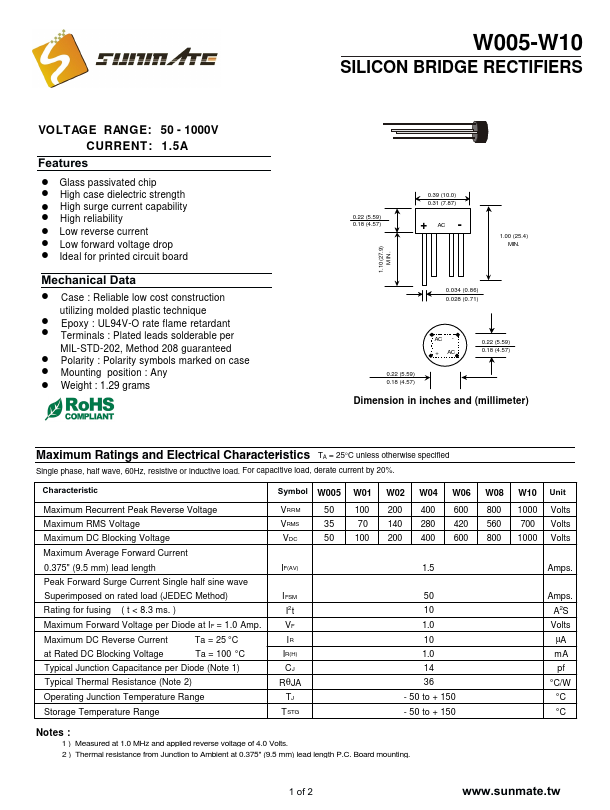

W08 Datasheet Preview — Preview of W08 PDF

Datasheet Specifications

Part number: W08
Manufacturer: Sunmate
File Size: 406.43 KB
Datasheet: W08-Sunmate.pdf
Description: SILICON BRIDGE RECTIFIERS

Features

* ! Glass passivated chip ! High case dielectric strength ! High surge current capability ! High reliability ! Low reverse current ! Low forward voltage drop ! Ideal for printed circuit board Mechanical Data ! Case : Reliable low cost construction utilizing molded plastic technique ! Epoxy : UL94V-O r
