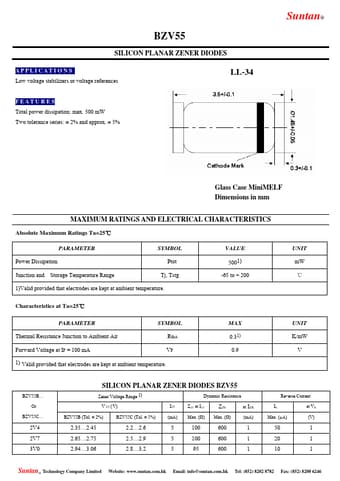

BZV55C6V2 - SILICON PLANAR ZENER DIODES
BZV55 SILICON PLANAR ZENER DIODES APPLI CAT I O N S Low voltage stabilizers or voltage references LL-34 FEAT U R E S Total power dissipation: max.
500 mW Two tolerance series: ± 2% and approx.
± 5% Suntan® Glass Case MiniMELF Dimensions in mm MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Absolute Maximum Ratings Ta=25℃ PARAMETER SYMBOL Power Dissipation Ptot Junction and Storage Temperature Range Tj, Tstg 1)Valid provided that electrodes are kept at ambient temperature.
VALUE 5001
