BZV55C6V8 Datasheet - Suntan

BZV55C6V8 SILICON PLANAR ZENER DIODES

BZV55 SILICON PLANAR ZENER DIODES APPLI CAT I O N S Low voltage stabilizers or voltage references LL-34 FEAT U R E S Total power dissipation: max. 500 mW Two tolerance series: ± 2% and approx. ± 5% Suntan® Glass Case MiniMELF Dimensions in mm MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Absolute Maximum Ratings Ta=25℃ PARAMETER SYMBOL Power Dissipation Ptot Junction and Storage Temperature Range Tj, Tstg 1)Valid provided that electrodes are kept at ambient temperature. VALUE 5001.

BZV55C6V8 Datasheet (305.32 KB)

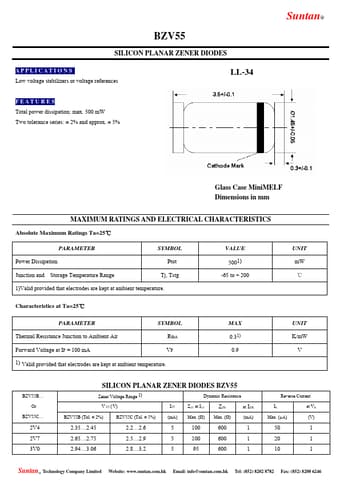

Preview of BZV55C6V8 PDF
BZV55C6V8 Datasheet Preview Page 2 BZV55C6V8 Datasheet Preview Page 3

Datasheet Details

Part number:

BZV55C6V8

Manufacturer:

Suntan

File Size:

305.32 KB

Description:

Silicon planar zener diodes.
