SR520 SCHOTTKY BARRIER RECTIFIER

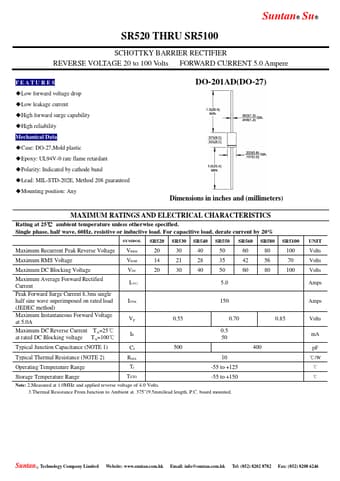

Suntan® Su® SR520 THRU SR5100 SCHOTTKY BARRIER RECTIFIER REVERSE VOLTAGE 20 to 100 Volts FORWARD CURRENT 5.0 Ampere FEATU RE S Low forward voltage drop Low leakage current High forward surge capability High reliability Mechanical Data Case: DO-27,Mold plastic Epoxy: UL94V-0 rate flame retardant Polarity: Indicated by cathode band Lead: MIL-STD-202E, Method 208 guaranteed Mounting position: Any DO-201AD(DO-27) Dimensions in inches and (millimeters) .
