SS26, SS22 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SS26 Description

Suntan® Su® SS22 THRU SS210 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE 20 to 100 Volts CURRENT 2.0 Ampere FEATU RE S *Low profile su.

SS26 Applications

* Guardring for over voltage protection Mechanical Data
* Case: Transfer molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Solder plated, solderable per MIL-STD-750 method 2026
* Polarity: Color band denotes cathode end
* Weight: 0.003 ounce, 0.093 gram DO-214AA（SMB） D

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS26, SS22. Please refer to the document for exact specifications by model.

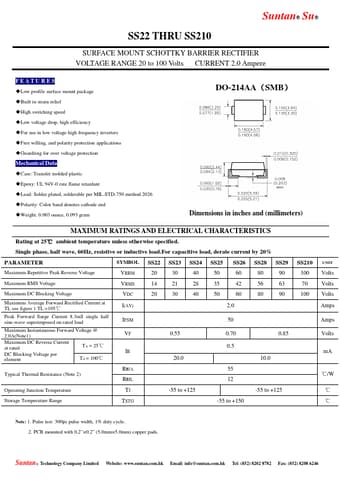

datasheet Preview Page 2

Datasheet Details

Part number
SS26, SS22
Manufacturer
Suntan
File Size
197.43 KB
Datasheet
SS22-Suntan.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SS26, SS22.
Please refer to the document for exact specifications by model.
