VP0550 Datasheet - Supertex Inc

P-Channel Vertical DMOS FET

VP0550 Features

* Free from secondary breakdown

* Low power drive requirement

* Ease of paralleling

* Low CISS and fast switching speeds

* Excellent thermal stability

* Integral source-drain diode

* High input impedance and high gain Applications

VP0550 General Description

This enhancement-mode (normally-off) transistor utilizes a vertical DMOS structure and Supertex’s well-proven, silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and the high input impedance and positive temperature coef.

VP0550 Datasheet (629.81 KB)

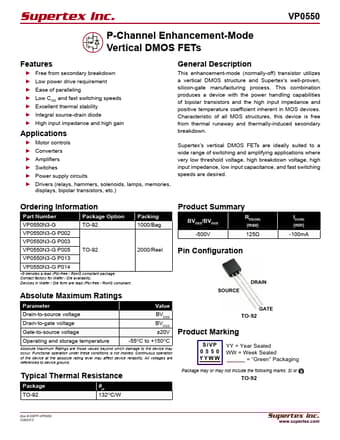

VP0550 Datasheet Preview — Preview of VP0550 PDF

Datasheet Details

Part number:

VP0550

Manufacturer:

Supertex Inc

File Size:

629.81 KB

Description:

P-channel vertical dmos fet.
