HV06, HV04, 64-Channel Serial To Parallel Converter

'~flI upertexinc.

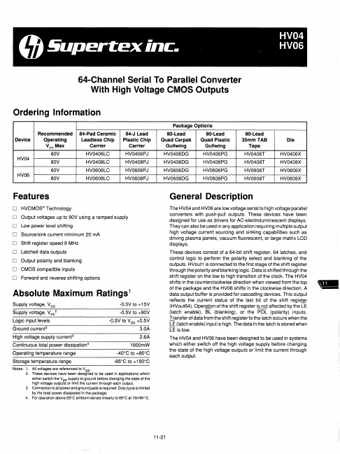

HV04 HV06 64-Channel Serial To Parallel Converter With High Voltage CMOS Outputs Ordering Information Device HV04 HV06 Recommended Operating Vpp Max 60V 80V 60V 80V B4-Pad Ceramic Leadless Chip Carrier HV0406LC HV0408LC HV0606LC HV0608LC B4-J Lead Plastic Chip Carrier HV0406PJ HV0408PJ HV0606PJ HV0608PJ Package Options BO-Lead Quad Cerpak Gullwing BO-Lead Quad Plastic Gullwing HV0406DG HV0406PG HV0408DG HV0408PG HV0606DG HV0606PG HV0608DG HV0608PG BO-Lea

HV06 Features

* o HVCMOS® Technology o Output voltages up to 90V using a ramped supply o Low power level shifting o Source/sink current minimum 20 mA o Shift register speed 8 MHz o Latched data outputs o Output polarity and blanking o CMOS compatible inputs o Forward and reverse shifting options Absolute Maximum R
