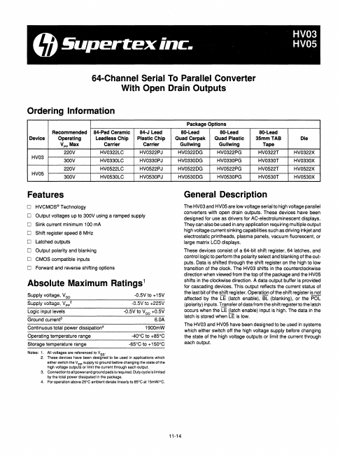

* o HVCMOS® Technology o Output voltages up to 300V using a ramped supply o Sink current minimum 100 mA o Shift register speed 8 MHz o Latched outputs o Output polarity and blanking o CMOS compatible inputs o Forward and reverse shifting options Absolute Maximum Ratings1 Supply voltage. VDO -0.5Vto
HV03
Supertex
337.51 KB
64-channel serial to parallel converter.
"~'-"
*upertex inc.
HV03 HV05
64-Channel Serial To Parallel Converter With Open Drain Outputs
Ordering Information
Device HV03 HV05
Recommend.
📁 Related Datasheet
