SDI565047 WIREWOUND CHIP INDUCTORS

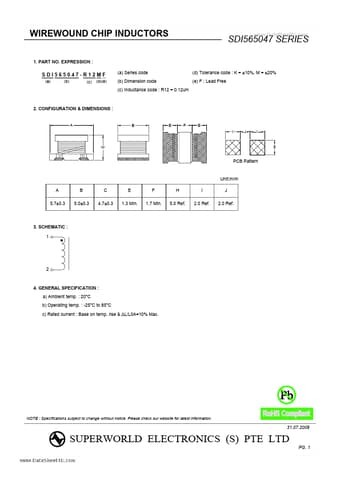

WIREWOUND CHIP INDUCTORS 1. PART NO. EXPRESSION : SDI565047 SERIES www.DataSheet4U.com SDI565047-R12MF (a) (b) (c) (d)(e) (a) Series code (b) Dimension code (c) Inductance code : R12 = 0.12uH (d) Tolerance code : K = ±10%, M = ±20% (e) F : Lead Free 2. CONFIGURATION & DIMENSIONS : A B E F E I J I C PCB Pattern Unit:m/m A 5.7±0.3 B 5.0±0.3 C 4.7±0.3 E 1.3 Min. F 1.7 Min. H 5.0 Ref. I 2.0 Ref. J 2.0 Ref. 3. SCHEMATIC : 1 2 4. GENERAL SPECIFICATION : a) Ambient temp. : 20°C b) Oper.
