SDI5220T, SDI5209 MCU

SDI5220T Description

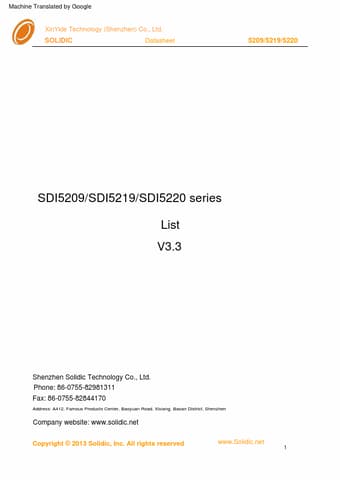

Machine Translated by Google XinYide Technology (Shenzhen) Co., Ltd.SOLIDIC Datasheet 5209/5219/5220 SDI5209/SDI5219/SDI5220 series List V3.3 S.
of external input pin T0/T1 in timer 0/1 counting mode Copyright © 2013 Solidic, Inc.

SDI5220T Features

* ÿ Core: Enhanced 80C51 (compatible with 8051 microcontroller) ÿ Flash: more than 100,000 times of programming life, data can be saved for more than 100 years at room temperature. 30KB (SDI5209/SDI5219/SDI520) FLASH space; built-in ISP function (SDA, SCL two-line burning) ÿ RAM: 512Bytes

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SDI5220T, SDI5209. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDI5220T, SDI5209
Manufacturer
SOLIDIC
File Size
459.24 KB
Datasheet
SDI5209-SOLIDIC.pdf
Description
MCU
Note
This datasheet PDF includes multiple part numbers: SDI5220T, SDI5209.
Please refer to the document for exact specifications by model.
