SDI322520 - WIREWOUND CHIP INDUCTORS

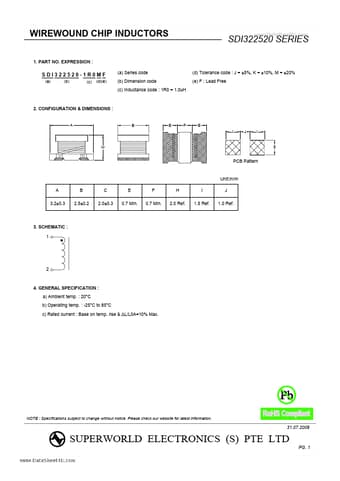

WIREWOUND CHIP INDUCTORS 1. PART NO. EXPRESSION : SDI322520 SERIES www.DataSheet4U.com SDI322520-1R0MF (a) (b) (c) (d)(e) (a) Series code (b) Dimension code (c) Inductance code : 1R0 = 1.0uH (d) Tolerance code : J = ±5%, K = ±10%, M = ±20% (e) F : Lead Free 2. CONFIGURATION & DIMENSIONS : A B E F E I J I C PCB Pattern Unit:m/m A 3.2±0.3 B 2.5±0.2 C 2.0±0.3 E 0.7 Min. F 0.7 Min. H 2.0 Ref. I 1.5 Ref. J 1.0 Ref. 3. SCHEMATIC : 1 2 4. GENERAL SPECIFICATION : a) Ambient temp. : 20°C.
