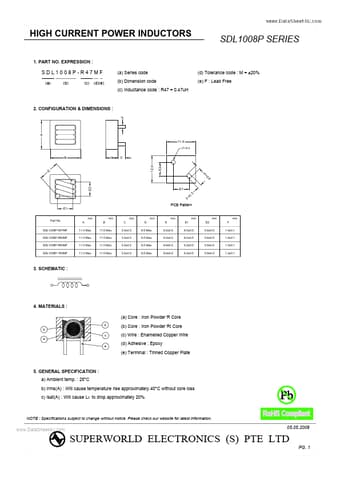

SDL1008P - HIGH CURRENT POWER INDUCTORS
HIGH CURRENT POWER INDUCTORS 1.
PART NO.
EXPRESSION : SDL1008P SERIES SDL1008P-R47MF (a) (b) (c) (d)(e) (a) Series code (b) Dimension code (c) Inductance code : R47 = 0.47uH (d) Tolerance code : M = ±20% (e) F : Lead Free 2.
CONFIGURATION & DIMENSIONS : F A 11.5 F+0.3 B D C 12.0 E2 E 0 F+ .6 E2 E1 F+ 0 .3 E1 mm A 11.0 Max.
11.0 Max.
11.0 Max.
11.0 Max.
B 11.5 Max.
11.5 Max.
11.5 Max.
11.5 Max.
mm C 3.5±0.5 3.5±0.5 3.5±0.5 3.5±0.5 mm D 8.5 Max.
8.5 Max.
8.5 Max.
8.5 Max.
mm E PCB P
