SDL1310 - HIGH CURRENT POWER INDUCTORS

HIGH CURRENT POWER INDUCTORS 1.

PART NO.

EXPRESSION : SDL1310 SERIES SDL1310-R60MF (a) (b) (c) (d)(e) (a) Series code (b) Dimension code (c) Inductance code : R60 = 0.60uH (d) Tolerance code : M = ±20% (e) F : Lead Free 2.

CONFIGURATION & DIMENSIONS : B C H D PCB Pattern E mm A 13.0 Max.

mm B 14.0 Max.

mm C 9.0 Max.

mm D 3.5±0.5 mm E 6.0±0.5 mm F 7.3±0.5 mm G 7.3±0.5 G A ØI F mm H 6.0±0.5 mm I 2.0±0.5 3.

SCHEMATIC : 4.

GENERAL SPECIFICATION : a) Operating temp.

: -55°C to

SDL1310_SuperworldElectronics.pdf

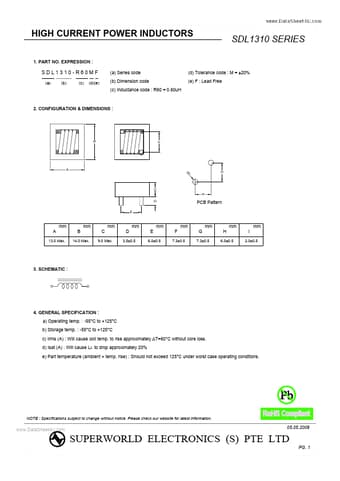

Preview of SDL1310 PDF
