SDL1108 Datasheet - Superworld

SDL1108 HIGH CURRENT POWER INDUCTORS

HIGH CURRENT POWER INDUCTORS 1. PART NO. EXPRESSION : SDL1108 SERIES SDL1108-R47MF (a) (b) (c) (d)(e) (a) Series code (b) Dimension code (c) Inductance code : R47 = 0.47uH (d) Tolerance code : M = ±20% (e) F : Lead Free 2. CONFIGURATION & DIMENSIONS : A F H B I R47 D C G PCB Pattern E Part No. SDL1108-R47MF SDL1108-R60MF SDL1108-1R0MF SDL1108-1R2MF SDL1108-1R5MF SDL1108-2R0MF mm A 12.0 Max. 12.0 Max. 12.0 Max. 12.5 Max. 12.0 Max. 12.0 Max. mm B 12.0 Max. 12.0 Max. 12.0 Max. 12.0.

SDL1108_Superworld.pdf

Preview of SDL1108 PDF

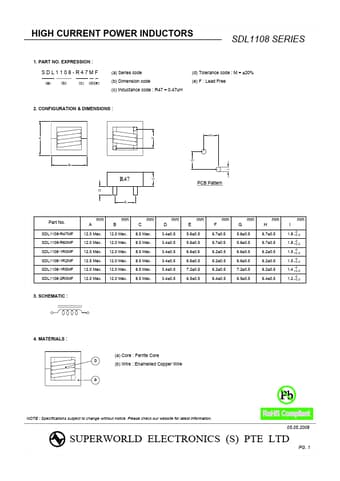

SDL1108 Datasheet Preview Page 2 SDL1108 Datasheet Preview Page 3

Datasheet Details

Part number:

SDL1108

Manufacturer:

Superworld

File Size:

573.31 KB

Description:

High current power inductors.
