SDL0806 HIGH CURRENT POWER INDUCTORS

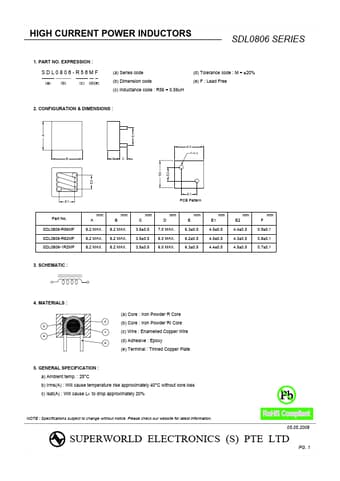

HIGH CURRENT POWER INDUCTORS 1. PART NO. EXPRESSION : SDL0806 SERIES SDL0806-R56MF (a) (b) (c) (d)(e) (a) Series code (b) Dimension code (c) Inductance code : R56 = 0.56uH (d) Tolerance code : M = ±20% (e) F : Lead Free 2. CONFIGURATION & DIMENSIONS : A E 9.0 F+0.3 B D C 9.0 E2 E2 E1 E1 PCB Pattern Part No. SDL0806-R56MF SDL0806-R82MF SDL0806-1R2MF mm A 8.2 MAX. 8.2 MAX. 8.2 MAX. B mm C 8.2 MAX. 8.2 MAX. 8.2 MAX. mm D 3.5±0.5 3.5±0.5 3.5±0.5 mm E 7.0 MAX. 6.0 MAX. 6.0 MAX. ht.

SDL0806 Datasheet (193.09 KB)

Preview of SDL0806 PDF

Datasheet Details

Part number:

SDL0806

Manufacturer:

Superworld

File Size:

193.09 KB

Description:

High current power inductors.
