STL15S15F (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter

Superworld Electronics

Description

SUPERWORLD ELECTRONICS STL Series * 2W Single Output Surface Mount DC-DC Converter STL PRODUCT RANGE Model STL03S03F STL03S05F STL03S09F STL03.
The STL Series provides 2W of power in a smaller compact industry standard package, typically used for 1W products.

📥 Download Datasheet

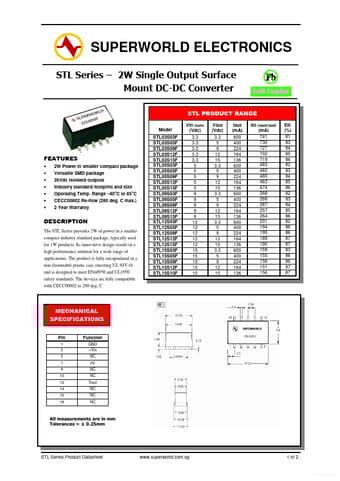

STL15S15F Datasheet Preview — Preview of STL15S15F PDF

Datasheet Specifications

Part number: STL15S15F
Manufacturer: Superworld Electronics
File Size: 162.47 KB
Datasheet: STL15S15F_SuperworldElectronics.pdf
Description: (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter

Features

* 2W Power in smaller compact package Versatile SMD package 2kVdc isolated outputs Industry standard footprint and size Operating Temp. Range

Applications

* The product is fully encapsulated in a non-flammable plastic case (meeting UL 94V-0) and is designed to meet EN60950 and UL1950 safety standards. The devices are fully compatible with CECC00802 to 280 deg. C MECHANICAL SPECIFICATIONS Pin 1 3 5 7 9 10 12 14 16 18 Function GND +Vin NC 0V NC NC Vou
