STL150N3LLH5 Datasheet - STMicroelectronics

N-channel Power MOSFET

STL150N3LLH5 Features

* Order code STL150N3LLH5 VDS 30 V RDS(on) max. 1.75 mĪ© ID 35 A(1) PowerFLAT 5x6 1. The value is rated according Rthj-pcb.

* Low on-resistance RDS(on)

* High avalanche ruggedness

* Low gate drive power loss D(5, 6, 7, 8) 8 76 5 Applications

* Switching applica

STL150N3LLH5 General Description

S(1, 2, 3) 12 34 Top View AM15540v2 This N-channel Power MOSFET is developed using the STripFET F5 technology and has been optimized to achieve very low on-state resistance, contributing to a FoM that is among the best in its class. Product status link STL150N3LLH5 Product summary Order code .

STL150N3LLH5 Datasheet (888.89 KB)

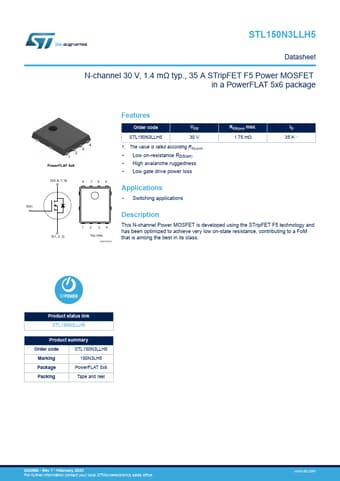

Preview of STL150N3LLH5 PDF

Datasheet Details

Part number:

STL150N3LLH5

Manufacturer:

STMicroelectronics ā†—

File Size:

888.89 KB

Description:

N-channel power mosfet.
