STL15N65M5 - N-channel Power MOSFET

STMicroelectronics

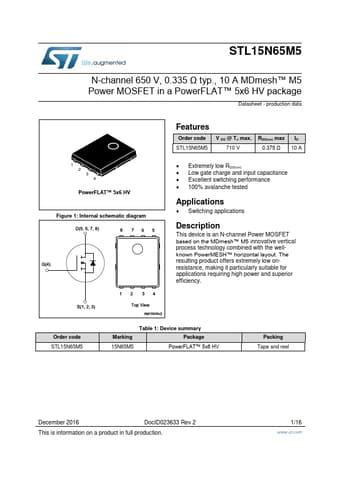

STL15N65M5 Datasheet Preview — Preview of STL15N65M5 PDF

Datasheet Details

Part number	STL15N65M5
Manufacturer	STMicroelectronics ↗
File Size	924.35 KB
Description	N-channel Power MOSFET
Datasheet	STL15N65M5-STMicroelectronics.pdf

STL15N65M5 Product details

Description

This device is an N-channel Power MOSFET based on the MDmesh™ M5 innovative vertical process technology combined with the wellknown PowerMESH™ horizontal layout.

Features

Order code STL15N65M5 V DS @ TJ max. RDS(on) max ID 710 V 0.375 Ω 10 A.
Extremely low RDS(on).
Low gate charge and input capacitance.
Excellent switching performance.
100% avalanche tested.
