SGN01G64C1CQ1SA-DCRT, SGN01G64C1CQ1SA-CCRT - 204 Pin SO-DIMM

Swissbit

📥 Download Datasheet

SGN01G64C1CQ1SA-DCRT Datasheet Preview — This datasheet PDF includes multiple part numbers: SGN01G64C1CQ1SA-DCRT, SGN01G64C1CQ1SA-CCRT. Please refer to the document for exact specifications by model.

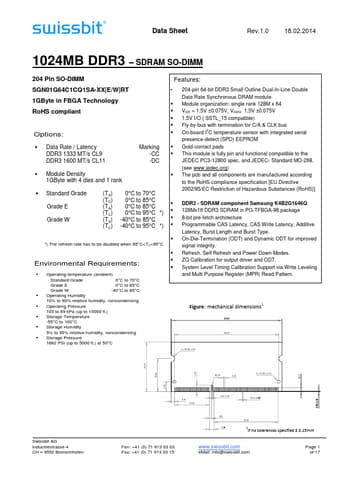

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SGN01G64C1CQ1SA-DCRT, SGN01G64C1CQ1SA-CCRT
Manufacturer	Swissbit
File Size	537.56 KB
Description	204 Pin SO-DIMM
Datasheet	SGN01G64C1CQ1SA-CCRT-Swissbit.pdf
Note	This datasheet PDF includes multiple part numbers: SGN01G64C1CQ1SA-DCRT, SGN01G64C1CQ1SA-CCRT. Please refer to the document for exact specifications by model.

SGN01G64C1CQ1SA-DCRT Product details

Features

SGN01G64C1CQ1SA-XX[E/W]RT.
204-pin 64-bit DDR3 Small Outline Dual-In-Line Double 1GByte in FBGA Technology Data Rate Synchronous DRAM module.
Module organization: single rank 128M x 64 RoHS compliant.
VDD = 1.5V ±0.075V, VDDQ 1.5V ±0.075V.
1.5V I/O ( SSTL_15 compatible) Options:.
Fly-by-bus with termination for C/A & CLK bus.
On-board I2C temperature sensor with integrated serial presence-detect (SPD) EEPROM.
Data Rate / Latency DDR3 1333 MT/s CL9 Ma.
