SL74HC112 Datasheet - System Logic Semiconductor

SL74HC112 Dual J-K Flip-Flop with Set and Reset

SL74HC112 Dual J-K Flip-Flop with Set and Reset High-Performance Silicon-Gate CMOS The SL74HC112 is identical in pinout to the LS/ALS112. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. Each flip-flop is negative-edge clocked and has active-low asynchronous Set and Reset inputs. Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Range: 2.0 to 6.0 V Low Input Current: 1..

SL74HC112_SystemLogicSemiconductor.pdf

Preview of SL74HC112 PDF

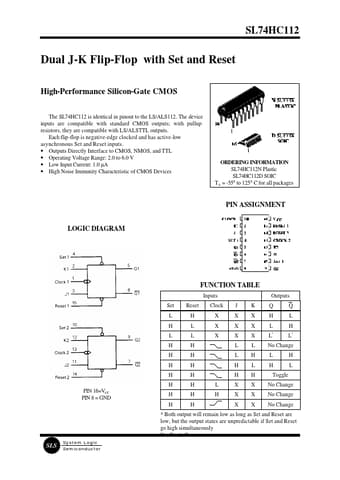

SL74HC112 Datasheet Preview Page 2 SL74HC112 Datasheet Preview Page 3

Datasheet Details

Part number:

SL74HC112

Manufacturer:

System Logic Semiconductor

File Size:

49.05 KB

Description:

Dual j-k flip-flop with set and reset.
