SL74HC125 Datasheet - System Logic Semiconductor

SL74HC125 Quad 3-State Noninverting Buffers

SL74HC125 Quad 3-State Noninverting Buffers High-Performance Silicon-Gate CMOS The SL74HC125 is identical in pinout to the LS/ALS125. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. The SL74HC125 noninverting buffers are designed to be used with 3state memory address drivers, clock drivers, and other bus-oriented systems. The devices have four separate output enables that are activelow. Outputs Directly In.

SL74HC125_SystemLogicSemiconductor.pdf

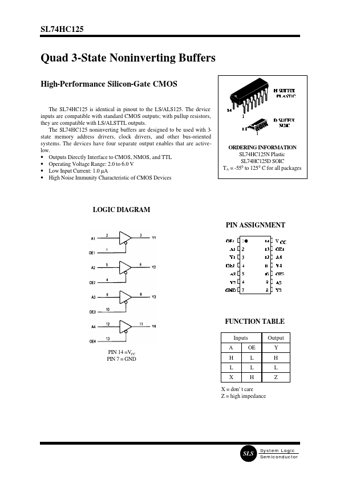

Preview of SL74HC125 PDF
SL74HC125 Datasheet Preview Page 2 SL74HC125 Datasheet Preview Page 3

Datasheet Details

Part number:

SL74HC125

Manufacturer:

System Logic Semiconductor

File Size:

45.37 KB

Description:

Quad 3-state noninverting buffers.
