SA2530

Single 25V Low Side Gate Driver

SA2530 Features

* Fully operational to 25V

* 3.3/5/25V input logic compatible

* 1.0A/1.5A(typ.) current capability

* Tolerant to negative transient voltage

* Fast propagation delays

* SOT23-5 package available Application

* Switch-Mode Power Supplies

* DC-to-DC Converters

* Motor

SA2530 General Description

The SA2530 is single channel high speed, low-side, gate driver device capable of effectively driving MOSFET and IGBT power switches. The SA2530 is designed to operate over a wide VDD range of 5.0 V to 25 V and wide temperature range of

*40°C to 125°C. Internal Undervoltage Lockout (UVLO) cir.

SA2530 Datasheet (278.00 KB)

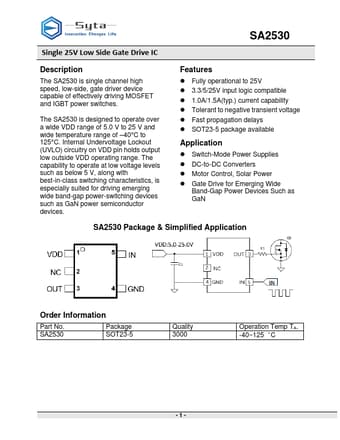

Preview of SA2530 PDF

Datasheet Details

Part number:

SA2530

Manufacturer:

Sytatek

File Size:

278.00 KB

Description:

Single 25v low side gate driver.
