SA2532A, SA2532 Datasheet - Sames

SA2532A VERSATILE SINGLE CHIP TELEPHONE

The SA2532 is a CMOS integrated circuit that contains all the functions needed to form a high performance electronic telephone. The device incorporates LD/MF dialling, melody generation, ring.

SA2532A Features

* n Speech circuit, LD/MF Dialler and Tone Ringer on one 28 pin CMOS chip n Soft clip to avoid harsh distortion n Line Loss Compensation selectable by pin option n Power down mode n Versatile applications for different PTT demands n 31 digit last number redial n Sliding Cursor protocol with comparison

SA2532_Sames.pdf

This datasheet PDF includes multiple part numbers: SA2532A, SA2532. Please refer to the document for exact specifications by model.

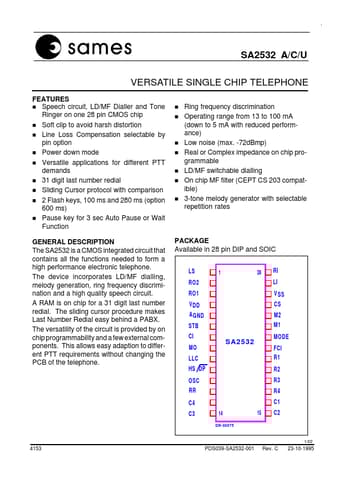

SA2532A Datasheet Preview Page 2 SA2532A Datasheet Preview Page 3

Datasheet Details

Part number:

SA2532A, SA2532

Manufacturer:

Sames

File Size:

583.00 KB

Description:

Versatile single chip telephone.

Note:

This datasheet PDF includes multiple part numbers: SA2532A, SA2532.
Please refer to the document for exact specifications by model.
