SA25F005 Datasheet - Saifun

512Kb Serial Flash

SA25F005 Features

* =

* = Saifun NROM™ Flash Cell Serial Peripheral Interface (SPI) Compatible, Supports SPI Modes 0 (0,0) and 3 (1,1) Page Program Operation: 256 pages (256 Bytes/Page) Single Page Rewrite Cycle (Erase and Program) in 10ms Typical Page Program Mode (up to 256 bytes) in 9ms Ty

SA25F005 General Description

The SA25F005 is a 512Kb (256K X 2) CMOS non-volatile serial Flash Memory. This device fully conforms to the SPI 4-wire protocol, is enabled through the Chip Select (CSb) pin, and uses Clock (SCK), Data-in (SI) and Data-out (SO) pins to synchronously control data transfer between the SPI microcontrol.

SA25F005 Datasheet (599.20 KB)

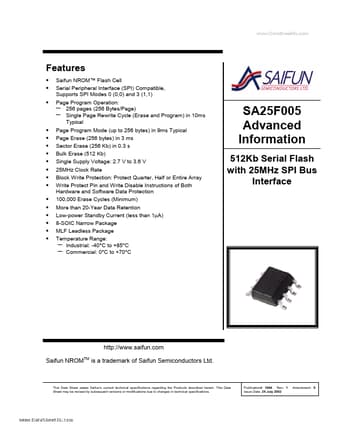

SA25F005 Datasheet Preview — Preview of SA25F005 PDF

Datasheet Details

Part number:

SA25F005

Manufacturer:

Saifun

File Size:

599.20 KB

Description:

512kb serial flash.
