SA25F010 Datasheet - Saifun

1Mb Serial Flash

SA25F010 Features

* =

* = Saifun NROM™ Flash Cell Serial Peripheral Interface (SPI) Compatible, Supports SPI Modes 0 (0,0) and 3 (1,1) Page Program Operation: 512 pages (256 Bytes/Page) Single Page Rewrite Cycle (Erase and Program) in 10ms Typical Page Program Mode (up to 256 bytes) in 9ms Ty

SA25F010 General Description

The SA25F010 is a 1Mb (256K X 4) CMOS non-volatile serial Flash Memory. This device fully conforms to the SPI 4-wire protocol, is enabled through the Chip Select (CSb) pin, and uses Clock (SCK), Data-in (SI) and Data-out (SO) pins to synchronously control data transfer between the SPI microcontrolle.

SA25F010 Datasheet (599.53 KB)

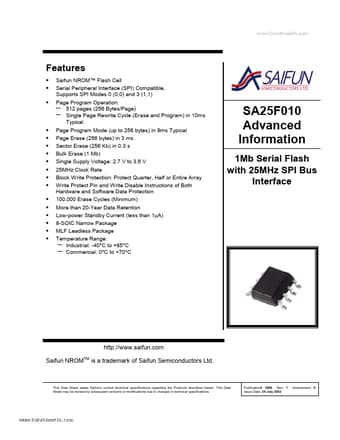

SA25F010 Datasheet Preview — Preview of SA25F010 PDF

Datasheet Details

Part number:

SA25F010

Manufacturer:

Saifun

File Size:

599.53 KB

Description:

1mb serial flash.
