2W005M 2.0A Bridge Rectifiers

2W005M Description

2.0A Bridge Rectifiers 2W005M * 2W10M 2.0A Bridge Rectifiers .

2W005M Features

* Low reverse leakage current
* High forward surge current capability
* Ideal for printed circuit board
* High temperature soldering guaranteed: 2WOM 260°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs (2.3kg) tension
* This series is UL recognized unde

📥 Download Datasheet

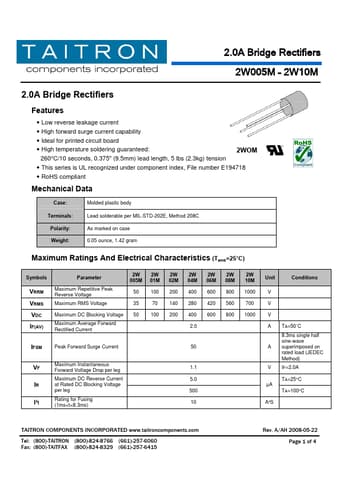

Preview of 2W005M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2W005M
Manufacturer
TAITRON
File Size
186.22 KB
Datasheet
2W005M-TAITRON.pdf
Description
2.0A Bridge Rectifiers
