BAV16WS

Two Terminals SMD Switching Diodes

BAV16WS Features

* Fast Switching Speed

* High Conductance

* Suitable for Automatic Insertion

* Electrically Identical to Standard JEDEC

* RoHS compliant Mechanical Data Case: Terminals: Weight: SOD-323, Plastic Case Solderable per MIL-STD-750, Method 2026 0.008 gram Maxim

BAV16WS General Description

Reverse Voltage Peak Reverse Voltage RMS Voltage Max. DC Blocking Voltage Average Forward Current Peak Forward Surge Current Power Dissipation VF Max Forward Voltage 1N4148WS 0.715 - 0.855 1.0 1.25 1N4448WS 75 100 50 75 200 4 200 0.72 1.0 - BAV16WS 0.855 - Unit Conditions V V V V mA A PW=1.0u.

BAV16WS Datasheet (236.37 KB)

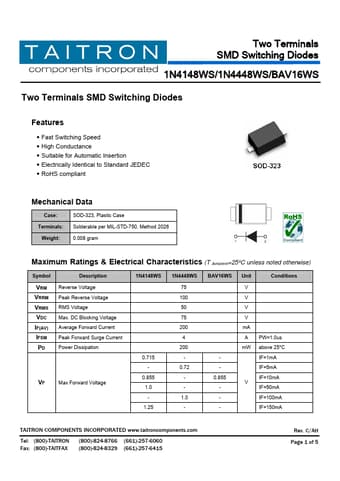

Preview of BAV16WS PDF

Datasheet Details

Part number:

BAV16WS

Manufacturer:

TAITRON

File Size:

236.37 KB

Description:

Two terminals smd switching diodes.
