DB3A - Bidirectional DIAC Trigger Diode

TAITRON

📥 Download Datasheet

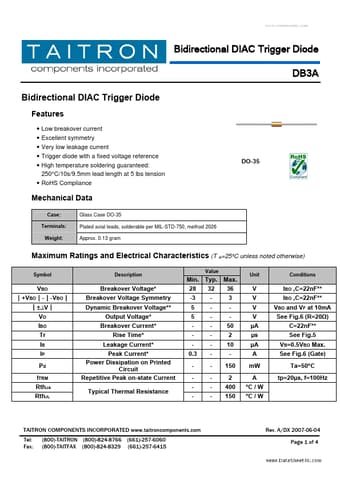

DB3A Datasheet Preview — Preview of DB3A PDF

Datasheet Details

Part number	DB3A
Manufacturer	TAITRON
File Size	254.85 KB
Description	Bidirectional DIAC Trigger Diode
Datasheet	DB3A_TAITRON.pdf

DB3A Product details

Description

Value VBO │+VBO│-│-VBO│ │±∆V│ VO IBO Tr IB IP Pd ITRM RthJA RthJL Breakover Voltage Breakover Voltage Symmetry Dynamic Breakover Voltage Output Voltage Breakover Current Rise Time Leakage Current Peak Current Power Dissipation on Printed Circuit Repetitive Peak on-state Current Typical Thermal Resistance Min.Typ.Max.28 32 36 -3 5 5 0.3 3 50 2 10 150 2 400 150 Unit Conditions V V V V µA µs µA A mW A °C / W °C / W IBO ,C=22nF IBO ,C=22nF

Features

Low breakover current Excellent symmetry Very low leakage current Trigger diode with a fixed voltage reference High temperature soldering guaranteed: 250°C/10s/9.5mm lead length at 5 lbs tension DO-35.
RoHS Compliance Mechanical Data Case: Terminals: Weight: Glass Case DO-35 Plated axial leads, solderable per MIL-STD-750, method 2026 Approx. 0.13 gram Maximum Ratings and Electrical Characteristics (T A=25ºC unless noted otherwise) Sy.
