DB3AM - Bidirectional DIAC Trigger Diode

TAITRON

📥 Download Datasheet

DB3AM Datasheet Preview — Preview of DB3AM PDF

Datasheet Details

Part number	DB3AM
Manufacturer	TAITRON
File Size	278.79 KB
Description	Bidirectional DIAC Trigger Diode
Datasheet	DB3AM_TAITRON.pdf

DB3AM Product details

Description

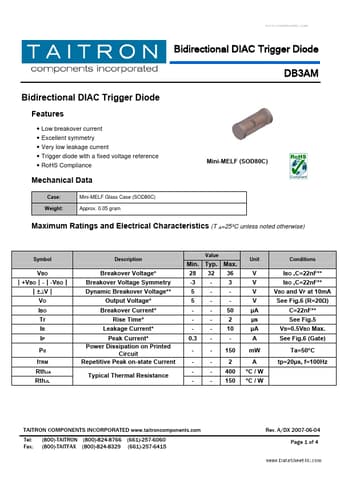

Value VBO │+VBO│-│-VBO│ │±∆V│ VO IBO Tr IB IP Pd ITRM RthJA RthJL Breakover Voltage Breakover Voltage Symmetry Dynamic Breakover Voltage Output Voltage Breakover Current Rise Time Leakage Current Peak Current Power Dissipation on Printed Circuit Repetitive Peak on-state Current Typical Thermal Resistance Min.Typ.Max.28 32 36 -3 5 5 0.3 3 50 2 10 150 2 400 150 Unit Conditions V V V V µA µs µA A mW A °C / W °C / W IBO ,C=22nF IBO ,C=22nF

Features

Low breakover current Excellent symmetry Very low leakage current Trigger diode with a fixed voltage reference RoHS Compliance Mini-MELF (SOD80C) Mechanical Data Case: Weight: Mini-MELF Glass Case (SOD80C) Approx. 0.05 gram Maximum Ratings and Electrical Characteristics (T A=25ºC unless noted otherwise) Symbol.
