TB1010G

10A Glass Passivated Bridge Rectifier

TB1010G Features

* High current capability

* High case dielectric strength

* High surge current capability

* Idea for PCB application

* RoHS Compliant MP10 Mechanical Data Case: Epoxy: Terminals: Polarity: Weight: Molded plastic with Heatsink Meets UL 94V-0 flammability rating Lead solderable

TB1010G General Description

Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current TB100 5G TB101 TB102 TB104 TB106 TB108 TB1010 GGGGG G Unit Conditions 50 100 200 400 600 800 1000 V 35 70 140 280 420 560 700 V 50 100 200 400 600 800 1000 V .

TB1010G Datasheet (333.73 KB)

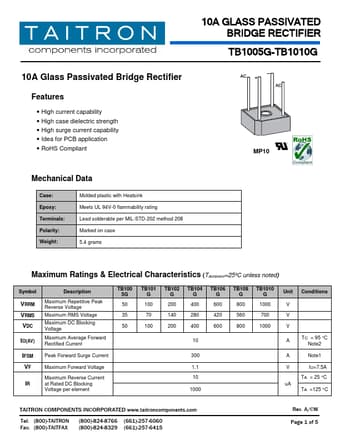

Preview of TB1010G PDF

Datasheet Details

Part number:

TB1010G

Manufacturer:

TAITRON

File Size:

333.73 KB

Description:

10a glass passivated bridge rectifier.
