TSD0033-728WT - Two Terminals Schottky Barrier Diode

TSD0033-728WT Description

Two Terminals Schottky Barrier Diode .
TSD0033-728WT Marking Code UT VRRM Repetitive Peak Reverse Voltage 30 VRM Reverse Voltage 30 IFM Peak Forward Current 150 IF(AV) IFSM PD Av.

TSD0033-728WT Features

* For high speed switching
* Low reverse current
* Low forward voltage
* RoHS compliant Mechanical Data Case: Terminals: Polarity: Weight: SOD-523, Plastic Case Solderable per MIL-STD-750, Method 2026 Color band denotes the cathode end Approx. 0.0016 gram Two Term

📥 Download Datasheet

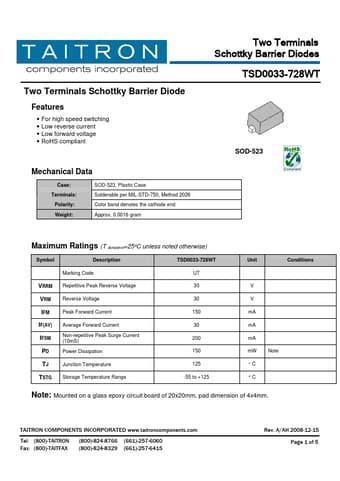

Preview of TSD0033-728WT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSD0033-728WT
Manufacturer
TAITRON
File Size
143.90 KB
Datasheet
TSD0033-728WT-TAITRON.pdf
Description
Two Terminals Schottky Barrier Diode
