TSD05C Datasheet - Texas Instruments

5-V Bidirectional TVS Diode

TSD05C Features

* IEC 61000-4-2 ESD protection:

* ±30kV contact discharge

* ±30kV air gap discharge

* IEC 61000-4-5 surge protection:

* 6.5-30A (8/20µs)

* Low IO capacitance < 7pF (typical)

* Ultra low leakage current: 10nA (maximum)

* Industrial tempe

TSD05C General Description

The TSDxxC are a family of bidirectional TVS protection diodes designed for clamping harmful transients such as ESD and surge. The TSDxxC devices are rated to dissipate ESD strikes up to ±30kV (contact and air gap discharge) which exceeds the maximum level specified in the IEC 61000-4-2 internation.

TSD05C Datasheet (915.74 KB)

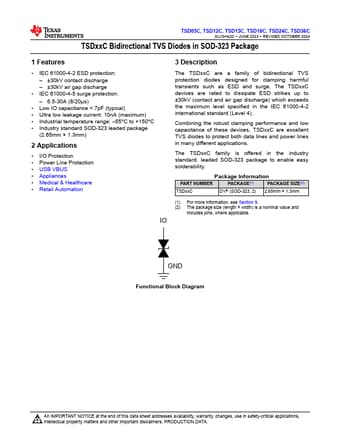

TSD05C Datasheet Preview — Preview of TSD05C PDF

Datasheet Details

Part number:

TSD05C

Manufacturer:

Texas Instruments ↗

File Size:

915.74 KB

Description:

5-v bidirectional tvs diode.
TSD05C, TSD12C, TSD15C, TSD18C, TSD24C, TSD36C SLVSH42C JUNE 2023 REVISED OCTOBER 2024 TSDxxC Bidirectional TVS Diodes in SOD-323 .
