TSD18C, TSD05C Datasheet - Texas Instruments

TSD18C 5-V Bidirectional TVS Diode

The TSDxxC are a family of bidirectional TVS protection diodes designed for clamping harmful transients such as ESD and surge. The TSDxxC devices are rated to dissipate ESD strikes up to ±30kV (contact and air gap discharge) which exceeds the maximum level specified in the IEC 61000-4-2 internation.

TSD18C Features

* IEC 61000-4-2 ESD protection:

* ±30kV contact discharge

* ±30kV air gap discharge

* IEC 61000-4-5 surge protection:

* 6.5-30A (8/20µs)

* Low IO capacitance < 7pF (typical)

* Ultra low leakage current: 10nA (maximum)

* Industrial tempe

TSD05C-etcTI.pdf

This datasheet PDF includes multiple part numbers: TSD18C, TSD05C. Please refer to the document for exact specifications by model.

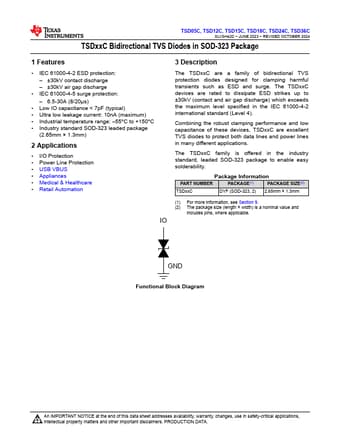

TSD18C Datasheet Preview Page 2 TSD18C Datasheet Preview Page 3
