TSD18N20M Datasheet, Mosfet, Truesemi

TSD18N20M Features

  • Mosfet
  • 18A,200V,Max.RDS(on)=0.17 Ω @ VGS =10V
  • Low gate charge(typical 22nC)
  • High ruggedness
  • Fast switching
  • 100% avalanche tested
  • Imp

PDF File Details

Part number:

TSD18N20M

Manufacturer:

Truesemi

File Size:

422.61kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This Power MOSFET is produced using Truesemi‘s advanced planar stripe DMOS technology. This advanced technology has been especially t

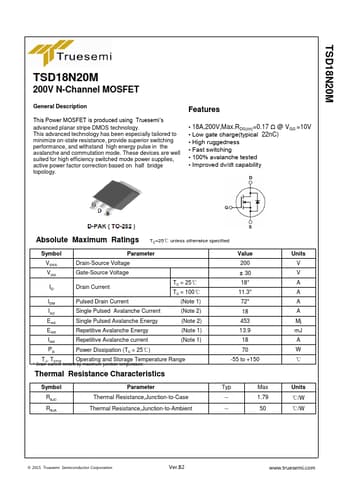

Datasheet Preview: TSD18N20M 📥 Download PDF (422.61kb)
Page 2 of TSD18N20M Page 3 of TSD18N20M
