TSD1N60M

N-Channel MOSFET

Truesemi

TSD1N60M Features

* 1.0A,600V,Max.RDS(on)=11.5 Ω @ VGS =10V

* Low gate charge(typical 5.2nC)

* High ruggedness

* Fast switching

* 100% avalanche tested

* Improved dv/dt capability Absolute Maximum Ratings TJ=25℃ unless otherwise specified Symbol VDSS VGS ID IDM EAS EA

TSD1N60M General Description

This Power MOSFET is produced using Truesemi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices a.

TSD1N60M Datasheet (386.64 KB)

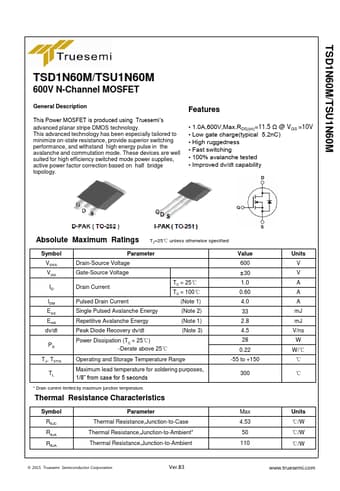

TSD1N60M Datasheet Preview — Preview of TSD1N60M PDF

Datasheet Details

Part number:

TSD1N60M

Manufacturer:

Truesemi

File Size:

386.64 KB

Description:

N-channel mosfet.
