GPP15B, GPP15A GLASS PASSIVATED RECTIFIER

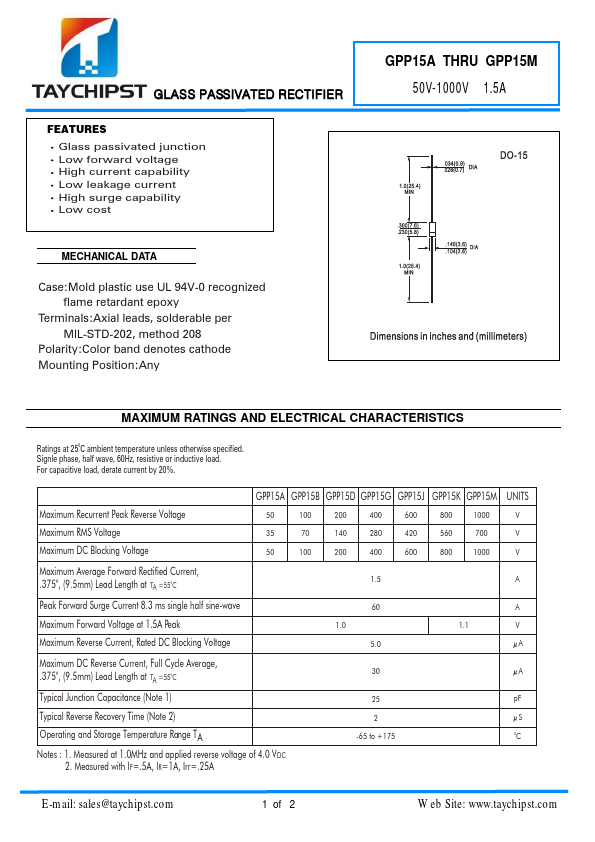

📥 Download Datasheet  Datasheet Preview Page 1

Description

GLASS PASSIVATED RECTIFIER .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GPP15B, GPP15A. Please refer to the document for exact specifications by model.

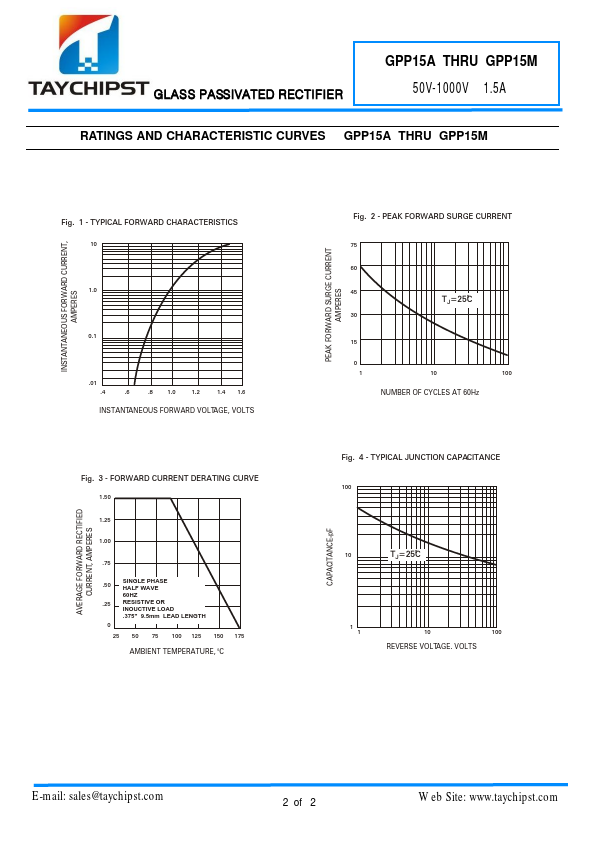

datasheet Preview Page 2

Datasheet Specifications

Part number
GPP15B, GPP15A
Manufacturer
TAYCHIPST
File Size
4.20 MB
Datasheet
GPP15A-TAYCHIPST.pdf
Description
GLASS PASSIVATED RECTIFIER
Note
This datasheet PDF includes multiple part numbers: GPP15B, GPP15A.
Please refer to the document for exact specifications by model.

Features

* Glass passivated junction Low forward voltage High current capability Low leakage current High surge capability Low cost MECHANICAL DATA Case:Mold plastic use UL 94V-0 recognized flame retardant epoxy Terminals:Axial leads, solderable per MIL-STD-202, method 208 Polarity:Color band denotes cathode M
