CXA-0317 - 18W QUAD OUTPUTS

Datasheet Summary

Description

This low profile DC to AC Inverter is developed for quad lamps LCD back-light.

Application includes LCD Monitor and Industrial PC.

Features

  • : PWM dimming Current Feedback Circuit Regulated output current Silicon coating in High Voltage area.

📥 Download Datasheet

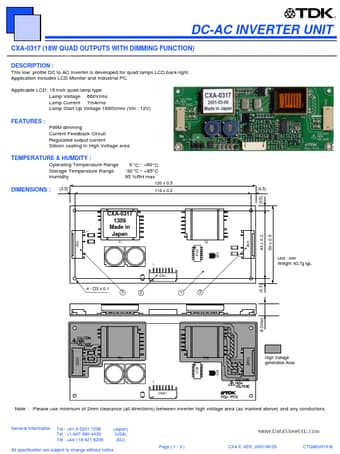

Datasheet preview – CXA-0317

Datasheet Details

Part number CXA-0317
Manufacturer TDK
File Size 141.32 KB
Description 18W QUAD OUTPUTS
Datasheet download datasheet CXA-0317 Datasheet
Additional preview pages of the CXA-0317 datasheet.

📁 Similar Datasheet

  • CXA-1191 - FM/AM Radio (Unisonic Technologies)
  • CXA-2081 - DC-AC Inverters (Power Systems GmbH)
  • CXA-L0505-NJL - DC-AC INVERTER UNIT (Power Systems GmbH)
  • CXA-L05XX-NJL - DC-AC INVERTER UNIT (Power Systems GmbH)
  • CXA-L0605-VJL - DC-AC INVERTER UNIT (Power Systems GmbH)
  • CXA-L0605-VSL - DC-AC INVERTER UNIT (Power Systems GmbH)
  • CXA-L0605A-VxL - DC-AC INVERTER UNIT (Power Systems GmbH)
  • CXA-L0612A-VJL - Power Supplies DC-AC Inverters (TDK Electronics)
  • CXA-L10A - DC-AC INVERTER UNIT (4.5W DUAL OUTPUTS/ PCB MOUNTABLE TYPE) (ETC)
  • CXA-M10A-L - (CXA-M10x-L) On-board type (TDK Electronics)
Other Datasheets by TDK

Full PDF Text Transcription

Click to expand full text
DC-AC INVERTER UNIT CXA-0317 (18W QUAD OUTPUTS WITH DIMMING FUNCTION) www.DataSheet4U.com DESCRIPTION : This low profile DC to AC Inverter is developed for quad lamps LCD back-light. Application includes LCD Monitor and Industrial PC. Applicable LCD; 15 inch quad lamp type Lamp Voltage 660Vrms Lamp Current 7mArms Lamp Start Up Voltage 1600Vrms (Vin : 12V) FEATURES : PWM dimming Current Feedback Circuit Regulated output current Silicon coating in High Voltage area TEMPERATURE & HUMDITY : Operating Temperature Range Storage Temperature Range Humidity 0 °C ~ +60 °C -30 °C ~ +85°C 95 %RH max 120 ± 0.5 113 ± 0.2 (3.5) (3.5) 43 ± 0.2 T1 IC02 T2 VR1 DIMENSIONS : (3.5) 50 ± 0.5 Unit : mm Weight :43.7g typ.
