CXA-0338 - 8W DUAL OUTPUTS

Datasheet Summary

Description

This low profile DC to AC Inverter is developed for dual lamps, low power LCD back-light.

Application includes industrial PC and LCD monitor.

Features

  • : Wide operating temperature range Alarm signal function PWM dimming type. Current Feedback Circuit Silicon Coating in High Voltage area.

📥 Download Datasheet

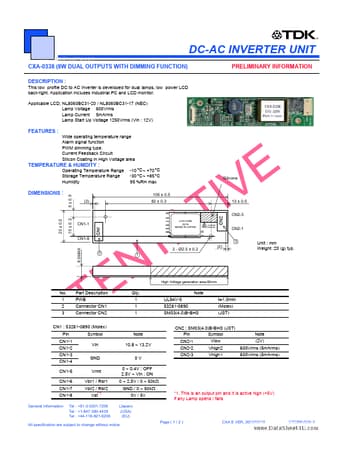

Datasheet preview – CXA-0338

Datasheet Details

Part number CXA-0338
Manufacturer TDK
File Size 125.07 KB
Description 8W DUAL OUTPUTS
Datasheet download datasheet CXA-0338 Datasheet
Additional preview pages of the CXA-0338 datasheet.

📁 Similar Datasheet

  • CXA-1191 - FM/AM Radio (Unisonic Technologies)
  • CXA-2081 - DC-AC Inverters (Power Systems GmbH)
  • CXA-L0505-NJL - DC-AC INVERTER UNIT (Power Systems GmbH)
  • CXA-L05XX-NJL - DC-AC INVERTER UNIT (Power Systems GmbH)
  • CXA-L0605-VJL - DC-AC INVERTER UNIT (Power Systems GmbH)
  • CXA-L0605-VSL - DC-AC INVERTER UNIT (Power Systems GmbH)
  • CXA-L0605A-VxL - DC-AC INVERTER UNIT (Power Systems GmbH)
  • CXA-L0612A-VJL - Power Supplies DC-AC Inverters (TDK Electronics)
  • CXA-L10A - DC-AC INVERTER UNIT (4.5W DUAL OUTPUTS/ PCB MOUNTABLE TYPE) (ETC)
  • CXA-M10A-L - (CXA-M10x-L) On-board type (TDK Electronics)
Other Datasheets by TDK

Full PDF Text Transcription

Click to expand full text
DC-AC INVERTER UNIT www.DataSheet4U.com CXA-0338 (8W DUAL OUTPUTS WITH DIMMING FUNCTION) DESCRIPTION : This low profile DC to AC Inverter is developed for dual lamps, low power LCD back-light. Application includes industrial PC and LCD monitor. Applicable LCD; NL8060BC31-20 / NL8060BC31-17 (NEC) Lamp Voltage 600Vrms Lamp Current 5mArms Lamp Start Up Voltage 1250Vrms (Vin : 12V) PRELIMINARY INFORMATION FEATURES : Wide operating temperature range Alarm signal function PWM dimming type. Current Feedback Circuit Silicon Coating in High Voltage area TEMPERATURE & HUMDITY : Operating Temperature Range Storage Temperature Range Humidity 5 ± 0.5 -10 °C ~ +70 °C -30 °C ~ +85 °C 95 %RH max 105 ± 0.5 Silicone DIMENSIONS : (2) 82 ± 0.3 13 ± 0.5 CN2-3 CN2-1 3 25 ± 0.5 15 ± 0.
