DPX202700DT-4035B5 Datasheet - TDK

DPX202700DT-4035B5 Multilayer Diplexer

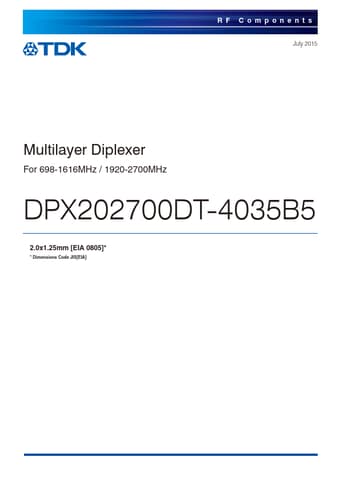

RF Components July 2015 Multilayer Diplexer For 698-1616MHz / 1920-2700MHz DPX202700DT-4035B5 2.0x1.25mm [EIA 0805] Dimensions Code JIS[EIA] RF Components Multilayer Diplexer For 698-1616MHz / 1920-2700MHz DPX202700DT-4035B5 SHAPES AND DIMENSIONS [Top view] 2.00±0.15 (1) (2) (3) 0.90±0.10 1.25±0.10 (6) (5) (4) Marking [Bottom view] 0.65±0.05 0.30±0.15 0.20±0.15 0.35±0.10 0.30±0.20 Terminal functions 1 Low-band 2 GND 3 High-band 4 GND 5 Common 6 GND Dimensions in mm RECO.

DPX202700DT-4035B5 Datasheet (76.27 KB)
