DPX202500DT-9032A1 Datasheet - TDK

DPX202500DT-9032A1 Multilayer Diplexer

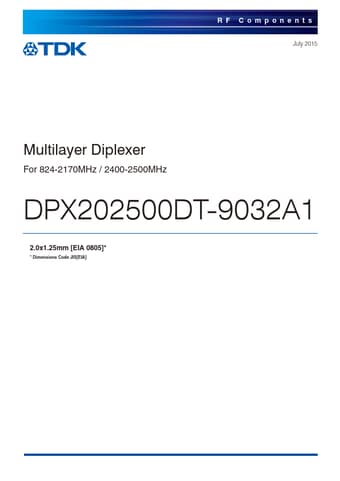

RF Components July 2015 Multilayer Diplexer For 824-2170MHz / 2400-2500MHz DPX202500DT-9032A1 2.0x1.25mm [EIA 0805] Dimensions Code JIS[EIA] RF Components Multilayer Diplexer For 824-2170MHz / 2400-2500MHz DPX202500DT-9032A1 SHAPES AND DIMENSIONS [Top view] 2.00±0.15 (6) (5) (4) 0.90±0.10 1.25±0.15 (1) (2) (3) Marking [Bottom view] 0.65±0.10 0.30±0.20 0.20±0.20 0.35±0.20 0.20±0.20 Terminal functions 1 GND 2 Common 3 GND 4 High-band 5 GND 6 Low-band Dimensions in mm RECO.
