DPX202690DT-4049A2 Multilayer Diplexer

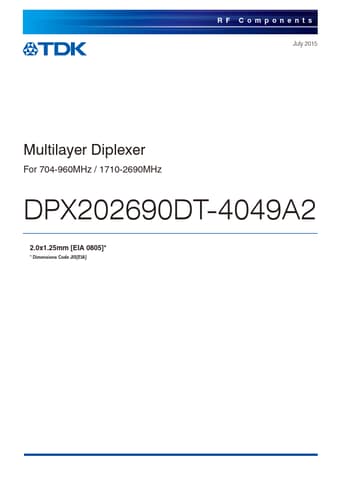

RF Components July 2015 Multilayer Diplexer For 704-960MHz / 1710-2690MHz DPX202690DT-4049A2 2.0x1.25mm [EIA 0805] Dimensions Code JIS[EIA] RF Components Multilayer Diplexer For 704-960MHz / 1710-2690MHz DPX202690DT-4049A2 SHAPES AND DIMENSIONS [Top view] 2.00±0.15 (6) (5) (4) 0.90±0.10 1.25±0.15 (1) (2) (3) Marking Conformity to RoHS Directive [Bottom view] 0.65±0.15 0.30±0.15 0.20±0.15 0.35±0.15 Terminal functions 1 GND 2 Common 3 GND 4 High-band 5 GND 6 Low-band Dimen.

DPX202690DT-4049A2 Datasheet (78.93 KB)
