DPX202690DT-4149A2 Multilayer Diplexer

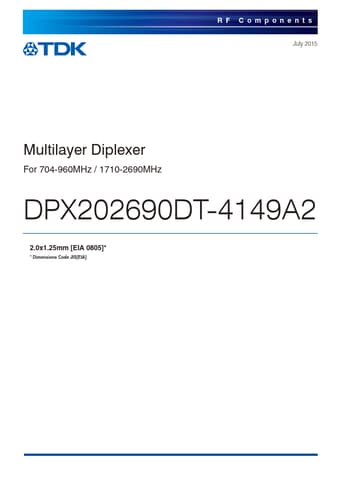

RF Components July 2015 Multilayer Diplexer For 704-960MHz / 1710-2690MHz DPX202690DT-4149A2 2.0x1.25mm [EIA 0805] Dimensions Code JIS[EIA] RF Components Multilayer Diplexer For 704-960MHz / 1710-2690MHz DPX202690DT-4149A2 SHAPES AND DIMENSIONS [Top view] 2.00±0.15 (1) (2) (3) 0.90±0.10 1.25±0.15 (6) (5) (4) Marking Conformity to RoHS Directive [Bottom view] 0.65±0.15 0.30±0.15 0.20±0.15 0.35±0.15 0.25±0.20 Terminal functions 1 High-band 2 GND 3 Low-band 4 GND 5 Common .

DPX202690DT-4149A2 Datasheet (77.96 KB)
