DPX202750DT-4058A1 Datasheet - TDK

DPX202750DT-4058A1 Multilayer Diplexer

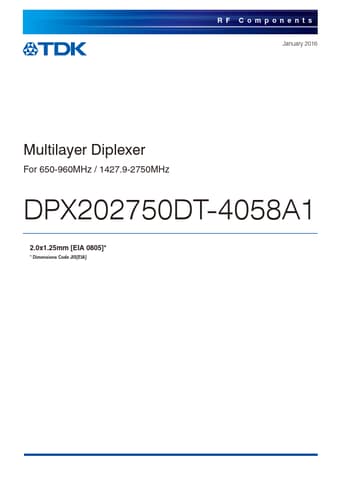

RF Components January 2016 Multilayer Diplexer For 650-960MHz / 1427.9-2750MHz DPX202750DT-4058A1 2.0x1.25mm [EIA 0805] Dimensions Code JIS[EIA] RF Components Multilayer Diplexer For 650-960MHz / 1427.9-2750MHz DPX202750DT-4058A1 SHAPES AND DIMENSIONS [Top view] 2.00±0.10 (6) (5) (4) 0.90±0.10 1.25±0.10 (1) (2) (3) Marking 0.275±0.10 [Bottom view] 0.65±0.10 0.35±0.10 0.30±0.10 0.60±0.10 Terminal functions 1 GND 2 Common 3 GND 4 High-band 5 GND 6 Low-band Dimensions in mm.

DPX202750DT-4058A1 Datasheet (73.93 KB)
