TD1204 - LOW-CURRENT SIGFOX GATEWAY AND GPS RECEIVER

TD1204 Description

TD1204 HIGH-PERFORMANCE, LOW-CURRENT SIGFOX™ GATEWAY AND GPS RECEIVER .

TD1204 Features

* SIGFOX Ready™ Gateway and RF transceiver Frequency range = ISM 868 MHz Receive sensitivity =-126 dBm Modulation
* (G)FSK, 4(G)FSK, GMSK
* OOK Max output power
* +14 dBm Low active radio power consumption
* 22 µA RX (windowed mode)
* 37 mA TX @ +10 dBm Multi-GN

TD1204 Applications

* SIGFOX™ transceiver (fully certified) Geolocation and Tracking Universal Timing and Synchronization Sensor network Health monitors Pin Assignments GND 1 Reserved

📥 Download Datasheet

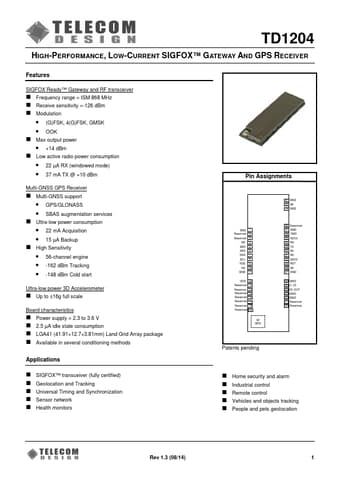

Preview of TD1204 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TD1204
Manufacturer
TELECOM
File Size
263.25 KB
Datasheet
TD1204-TELECOM.pdf
Description
LOW-CURRENT SIGFOX GATEWAY AND GPS RECEIVER
