TD1208R, TD1207R - Low-Current SIGFOX Gateway

TD1208R Description

SIGFOXTM Solution High-Performance, Low-Current SIGFOX™ Gateway Rev 1.2 TD1207R/08R DATASHEET GENERAL .
Telecom Design’s TD1207R/08R devices are high performance, low current SIGFOX™ gateways.

TD1208R Features

* 2.3V to 3.3V Power supply
* 1.8 µA sleep mode consumption
* LGA25 (25.4×12.7×3.81mm) Land Grid Array package with castellated pads
* High CAF Resistance KEY FEATURES
* SIGFOX™ transceiver certified
* 145 dB maximum link budget
* (G)FSK, 4(G)FSK, GMSK, OOK modulation

TD1208R Applications

* SIGFOX™ transceiver (fully certified)
* Sensor network
* Health monitors
* Remote control
* Home security and alarm
* Telemetry
* Industrial control June 2016 - Rev 1.2 rfmodules. td-next. com Page 1 TD1207R/08R SIGFOXTM Solution Rev 1.2 DATASHEET Disclaimer

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TD1208R, TD1207R. Please refer to the document for exact specifications by model.

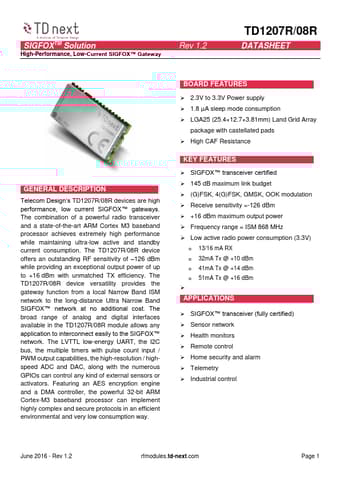

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TD1208R, TD1207R
Manufacturer
Telecom
File Size
1.29 MB
Datasheet
TD1207R-Telecom.pdf
Description
Low-Current SIGFOX Gateway
Note
This datasheet PDF includes multiple part numbers: TD1208R, TD1207R.
Please refer to the document for exact specifications by model.
